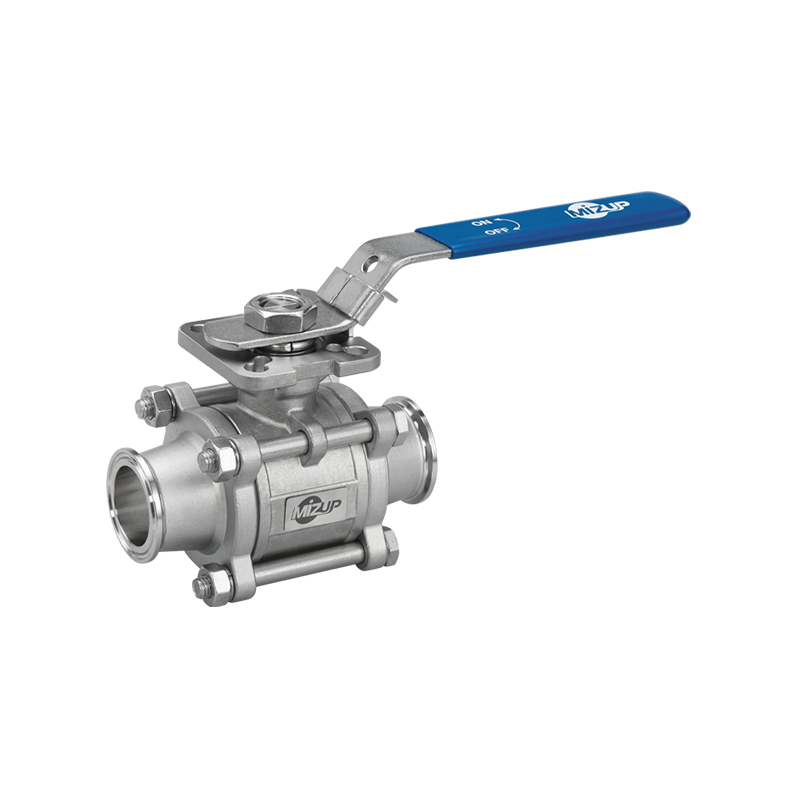

Model 906 3-Piece Sanitary Ball Valve / T-Clamp (1/2" - 4")

Pressure Rating
PN64 (1/2"-2")
PN50 (21/2"-4")
Material
EN10213-1.4408,
ASTM A351-CF8M
Seat
Cavity filled PTFE,
Non-cavity filled TFM1600
Bore Type
Standard Bore
Additional Features
Surface roughness: Ra≦0.4μm
ISO 5211 direct mounting pad
Able to add anti-static device
(Ball-stem-body)
Download
INQUIRY
Specifications
Model 906 3-Piece Sanitary Ball Valve / T-Clamp (1/2" - 4")

Materials List
NO. PART NAME Q'TY MATERIAL
1 BODY 1 1.4408(CF8M)
2 END CAP 2 1.4408(CF8M)
3 BALL 1 SUS316
4 STEM 1 SUS316
5 PACKING 2 PTFE
6 SEAT/CAVITY FILLER 2 PTFE
7 STEM SEAL 1 R.PTFE
8 V-RING PACKING 1SET PTFE
9 BUSHING 1 50%S.S.POWDER
FILLED PTFE
10 O-RING 1 VITON
11 STEM NUT 2 SUS304
12 GLAND 1 SUS304
13 BELLEVILLE WASHER 2 SUS304
14 BOLT 4~6 SUS304
15 WASHER 4~12 SUS304
16 BOLT NUT 4~12 SUS304
17 LOCK SADDLE 1 SUS304
18 WASHER 1 SUS304
19 HANDLE 1 SUS304
20 HANDLE SLEEVE 1 VINYL
21 STOP PIN 1 SUS304
22 STOP PIN NUT 1 SUS304
Dimensions (mm)
SIZE B B1 ØC ØD ØC1 ØD1 E H ☐I L ISO 5211
1/2" 40.2 9 25 9.5 12.7 9.4 128 70.5 9 89.1 F03 F04
3/4" 43.4 9 25 15.9 19.05 15.75 128 73.8 9 101 F03 F04
1" 52 14 50.4 22.2 25.4 22.2 167 85.4 11 114 F04 F05
11/2" 65.7 15.5 50.4 35 38.1 34.8 215 99.6 14 140 F05 F07
2" 73.95 15.5 64 47.5 50.8 47.5 215 107.8 14 156 F05 F07
21/2" 94 16.5 77.5 60.3 63.5 60.2 322 145.7 17 197 F07 F10
3" 102 16.5 90.9 73 76.2 72.9 322 154.7 17 229 F07 F10
4" 132 21.5 118.9 97.4 101.6 97.4 320 188 22 241 F10
